Column radiator - 3 Column 500mm high x 1196mm. 4557 BTU 1336 Watts White

Name: Column radiator - 3 Column 500mm high x 1196mm. 4557 BTU 1336 Watts White
Brand: A1 Radiators
Price: 469.67 GBP
Availability: InStock

A1 Radiators SKU: Barcode:

£469.67 £737.99 Save £268.32

Tax included

Availability: 3 - 5 Days

Bottom of radiator to inlet centre (mm): 35

BTU: 4557

BTU group (Delta T 50 UK Standard Central Heating): 4000 to 5000 BTU

BTU (Delta T 30 Heat Source Pumps): 2324

BTU (Delta T 50 UK Standard Central Heating): 4557

Columns: 3

Depth (mm) : 101

Finish: White (RAL 9016)

Guarantee: 10 Years

Height (mm) : 500

Length group: 901 to 1200mm

Length (mm) : 1196

Material: Mild Steel

Number of optional feet: 4

Orientation: Horizontal

Pipe centres** (mm): 1286

Sections: 26

Wall to face (mm) : 133 - 143

Wall to pipe centres (mm) : 82 - 92

Watts: 1336

Watts group (Delta T 50 UK Standard Central Heating): 1200 to 1500 Watts

Watts (Delta T 30 Heat Source Pumps): 681

Weight (kg) : 26.0

Delta T 30 (Δ T30) is the industry standard for sizing radiators when converting to a low-temperature system like an Air Source Heat Pump (ASHP) or Ground Source Heat Pumps (GSHP).

"" Pipe centres are calculated by adding 90mm to the width of the radiator. This could vary slightly with different valves.

The classic column radiator is suitable for modern or older houses. It is available in 2, 3, 4, 5 and 6 column as well as several heights; the number of sections can be from 3 to 40. Each radiator comes with a 10-year manufacturer’s guarantee. Please contact us for larger sizes.

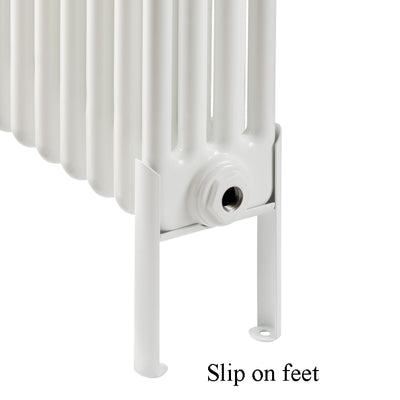

Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.
