Column radiator - 3 Column 400mm high x 1646mm. 5163 BTU 1513 Watts Bare Metal Lacquered media thumbnails

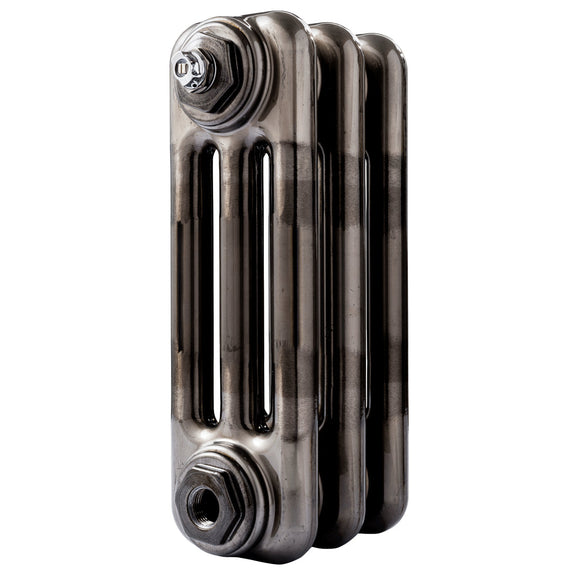

3 Column radiator
3 Column radiator
3 Column radiator

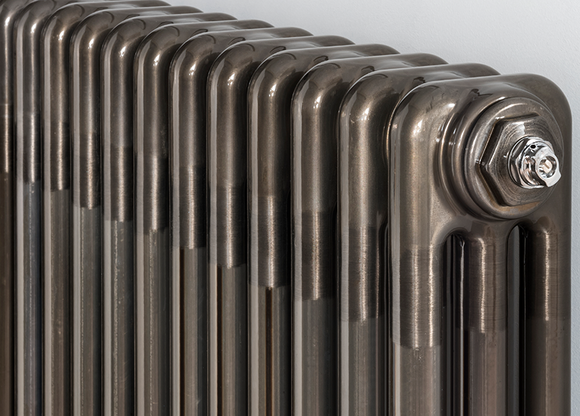

3 Column radiator in Bare Metal Lacquer finish
10 year guarantee

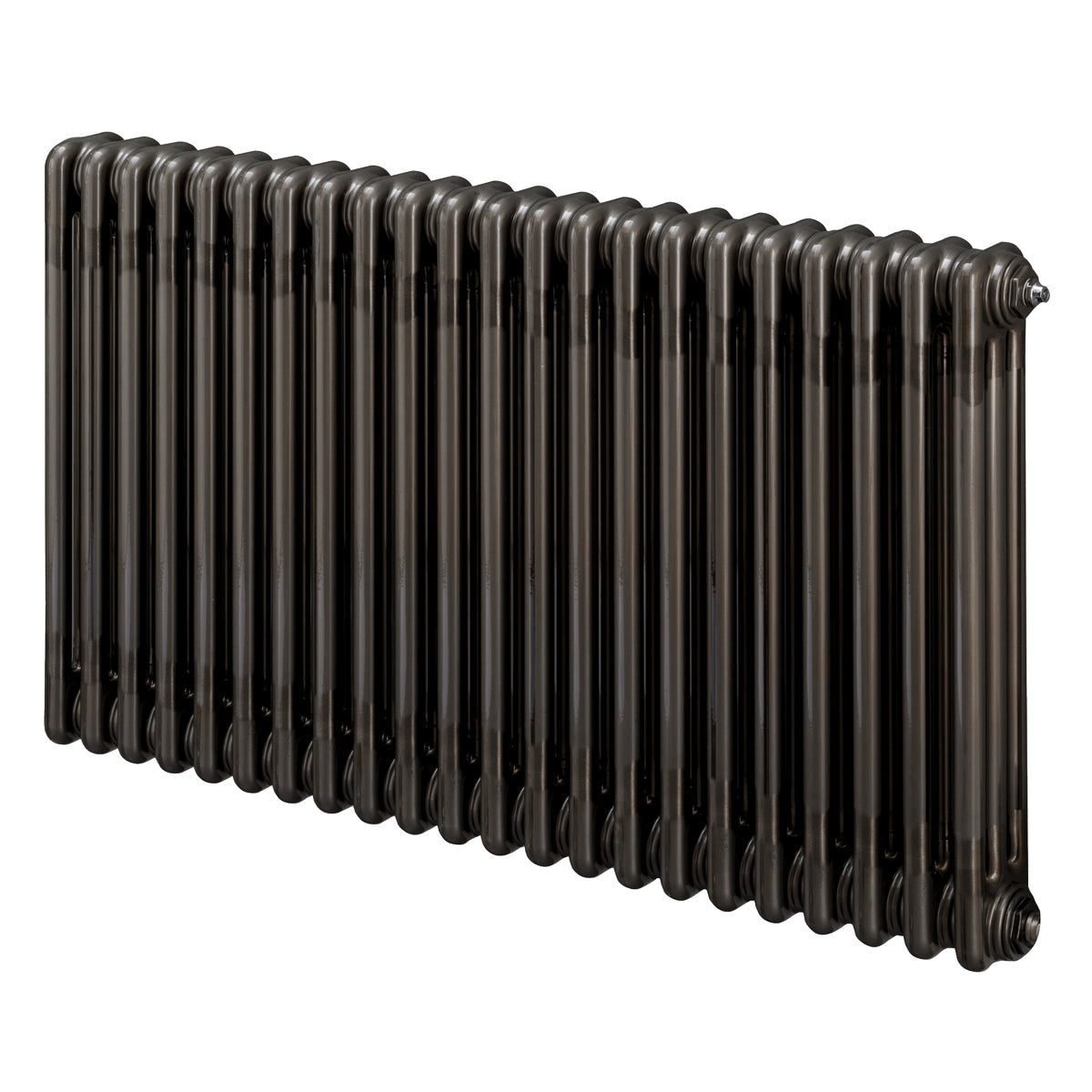

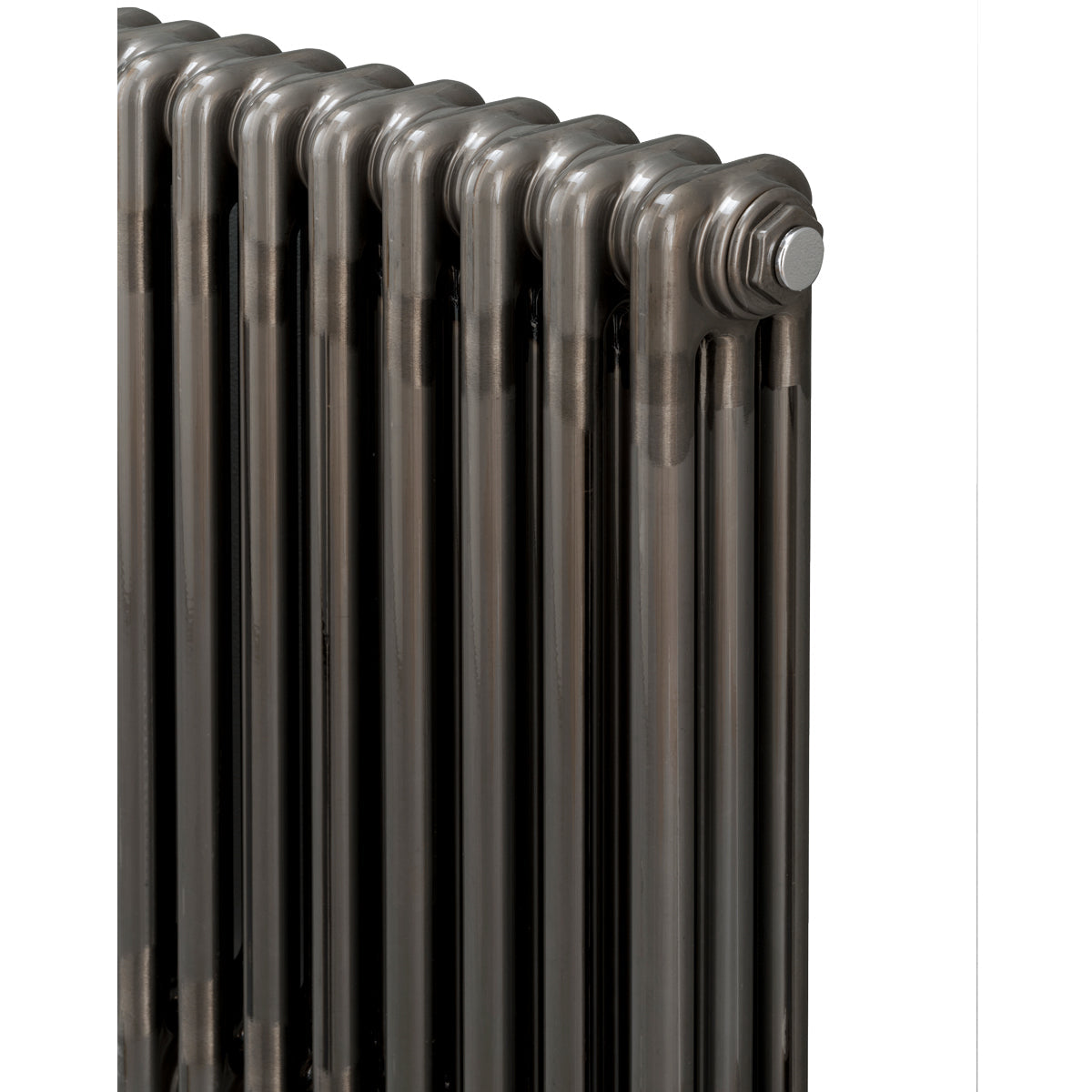

Column radiator - 3 Column 400mm high x 1646mm. 5163 BTU 1513 Watts Bare Metal Lacquered

A1 Radiators

£806.94 £1,267.94 Save £461

Tax included

  • Availability: 6 Weeks
  • Bottom of radiator to inlet centre (mm): 35
  • BTU: 5163
  • BTU group (Delta T 50 UK Standard Central Heating): 5000 to 6000 BTU
  • BTU (Delta T 30 Heat Source Pumps): 2633
  • BTU (Delta T 50 UK Standard Central Heating): 5163
  • Columns: 3
  • Depth (mm) : 101
  • Finish: Bare Metal Lacquered
  • Guarantee: 10 Years
  • Height (mm) : 400
  • Length group: 1501 to 1850mm
  • Length (mm) : 1646
  • Material: Mild Steel
  • Number of optional feet: 4
  • Orientation: Horizontal
  • Pipe centres** (mm): 1736
  • Sections: 36
  • Wall to face (mm) : 125
  • Wall to pipe centres (mm) : 74.5
  • Watts: 1513
  • Watts group (Delta T 50 UK Standard Central Heating): 1500 to 1800 Watts
  • Watts (Delta T 30 Heat Source Pumps): 772
  • Weight (kg) : 28.8


  • The classic column radiator is suitable for modern or older houses. It is available in 2, 3, 4, 5 and 6 column as well as several heights; the number of sections can be from 3 to 40. Each radiator comes with a 10-year manufacturer’s guarantee. Please contact us for larger sizes.


    Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.
