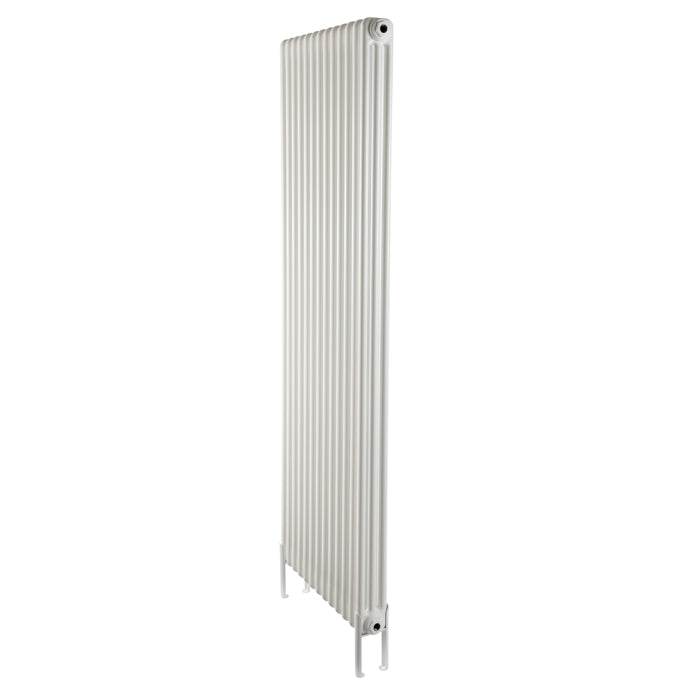

Column radiator - 3 Column 2200mm high x 1826mm. 28070 BTU 8227 Watts White

Name: Column radiator - 3 Column 2200mm high x 1826mm. 28070 BTU 8227 Watts White
Brand: A1 Radiators
Price: 2289.59 GBP
Availability: InStock

A1 Radiators SKU: Barcode:

£2,289.59 £3,597.64 Save £1,308.05

Tax included

Availability: 4 Weeks

Bottom of radiator to inlet centre (mm): 35

BTU: 28070

BTU group (Delta T 50 UK Standard Central Heating): 12000 BTU and above

BTU (Delta T 30 Heat Source Pumps): 14316

BTU (Delta T 50 UK Standard Central Heating): 28070

Columns: 3

Depth (mm) : 101

Finish: White (RAL 9016)

Guarantee: 10 Years

Height (mm) : 2200

Length group: 1501 to 1850mm

Length (mm) : 1826

Material: Mild Steel

Number of optional feet: 4

Orientation: Vertical

Pipe centres** (mm): 1916

Sections: 40

Wall to face (mm) : 133 - 143

Wall to pipe centres (mm) : 82 - 92

Watts: 8227

Watts group (Delta T 50 UK Standard Central Heating): 3600 Watts and above

Watts (Delta T 30 Heat Source Pumps): 4196

Weight (kg) : 172.6

Delta T 30 (Δ T30) is the industry standard for sizing radiators when converting to a low-temperature system like an Air Source Heat Pump (ASHP) or Ground Source Heat Pumps (GSHP).

"" Pipe centres are calculated by adding 90mm to the width of the radiator. This could vary slightly with different valves.

The classic column radiator is suitable for modern or older houses. It is available in 2, 3, 4, 5 and 6 column as well as several heights; the number of sections can be from 3 to 40. Each radiator comes with a 10-year manufacturer’s guarantee. Please contact us for larger sizes.

Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.
