Column radiator - 4 Column 400mm high x 566mm. 2236 BTU 655 Watts Bare Metal Lacquered media thumbnails

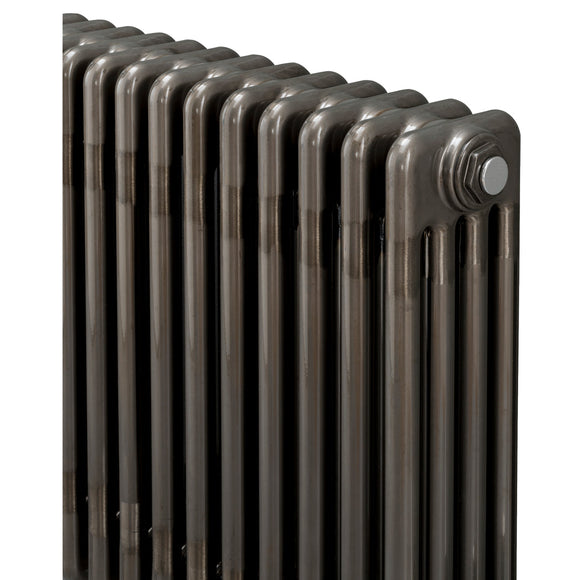

4 Column radiator
10 year guarantee

Column radiator - 4 Column 400mm high x 566mm. 2236 BTU 655 Watts Bare Metal Lacquered

A1 Radiators

£327.14 £514.03 Save £186.89

Tax included

  • Availability: 6 Weeks
  • Bottom of radiator to inlet centre (mm): 35
  • BTU: 2236
  • BTU group (Delta T 50 UK Standard Central Heating): 2000 to 3000 BTU
  • BTU (Delta T 30 Heat Source Pumps): 1140
  • BTU (Delta T 50 UK Standard Central Heating): 2236
  • Columns: 4
  • Depth (mm) : 139
  • Finish: Bare Metal Lacquered
  • Guarantee: 10 Years
  • Height (mm) : 400
  • Length group: 301 to 600mm
  • Length (mm) : 566
  • Material: Mild Steel
  • Number of optional feet: 2
  • Orientation: Horizontal
  • Pipe centres** (mm): 656
  • Sections: 12
  • Wall to face (mm) : 163
  • Wall to pipe centres (mm) : 93.5
  • Watts: 655
  • Watts group (Delta T 50 UK Standard Central Heating): 600 to 900 Watts
  • Watts (Delta T 30 Heat Source Pumps): 334
  • Weight (kg) : 12.8


  • The classic column radiator is suitable for modern or older houses. It is available in 2, 3, 4, 5 and 6 column as well as several heights; the number of sections can be from 3 to 40. Each radiator comes with a 10-year manufacturer’s guarantee. Please contact us for larger sizes.


    Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.
