Column radiator - 4 Column 665mm high x 1556mm. 10063 BTU 2949 Watts Bare Metal Lacquered media thumbnails

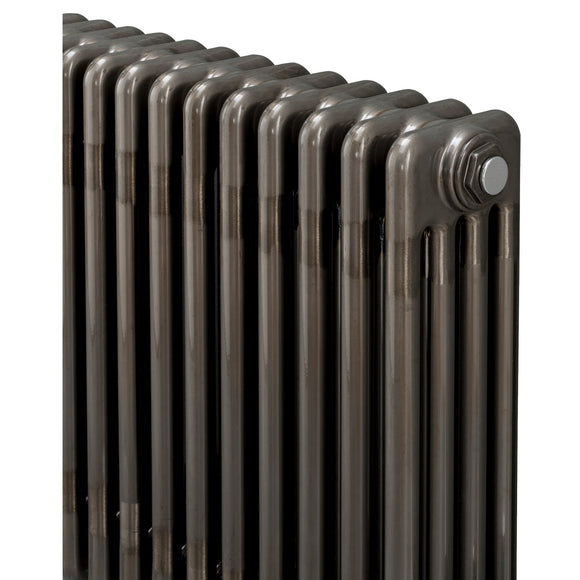

4 Column radiator
10 year guarantee

Column radiator - 4 Column 665mm high x 1556mm. 10063 BTU 2949 Watts Bare Metal Lacquered

A1 Radiators

£943.74 £1,482.90 Save £539.16

Tax included

  • Availability: 6 Weeks
  • Bottom of radiator to inlet centre (mm): 35
  • BTU: 10063
  • BTU group (Delta T 50 UK Standard Central Heating): 10000 to 12000 BTU
  • BTU (Delta T 30 Heat Source Pumps): 5132
  • BTU (Delta T 50 UK Standard Central Heating): 10063
  • Columns: 4
  • Depth (mm) : 139
  • Finish: Bare Metal Lacquered
  • Guarantee: 10 Years
  • Height (mm) : 665
  • Length group: 1501 to 1850mm
  • Length (mm) : 1556
  • Material: Mild Steel
  • Number of optional feet: 4
  • Orientation: Horizontal
  • Pipe centres** (mm): 1646
  • Sections: 34
  • Wall to face (mm) : 163
  • Wall to pipe centres (mm) : 93.5
  • Watts: 2949
  • Watts group (Delta T 50 UK Standard Central Heating): 2700 to 3000 Watts
  • Watts (Delta T 30 Heat Source Pumps): 1504
  • Weight (kg) : 57.5


  • The classic column radiator is suitable for modern or older houses. It is available in 2, 3, 4, 5 and 6 column as well as several heights; the number of sections can be from 3 to 40. Each radiator comes with a 10-year manufacturer’s guarantee. Please contact us for larger sizes.


    Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.
