Curved Radiator - 2 Column 500mm high x 566mm. 1501 BTU 440 Watts Bare Metal Lacquered

A1 Radiators

£460.25 £767.24 Save £306.99

Tax included

  • Availability: 6 Weeks
  • BTU: 1501
  • BTU group: 1000 to 2000 BTU
  • Columns: 2

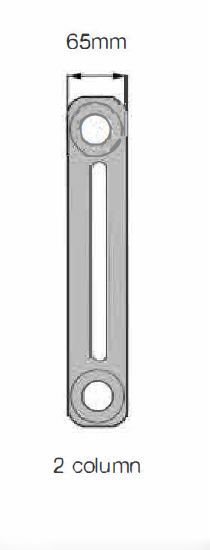

  • Depth (mm) : 65

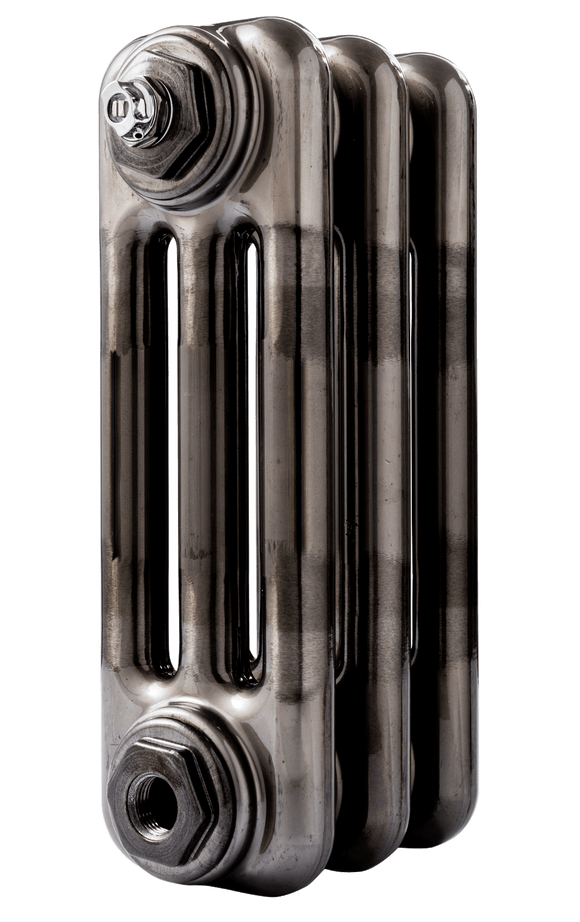

  • Finish: Bare Metal Lacquered
  • Guarantee: 10 Years
  • Height (mm) : 500
  • Length group: 301 to 600mm
  • Length (mm) : 566
  • Material: Mild Steel
  • Number of feet: 2
  • Orientation: Horizontal
  • Sections: 12
  • Wall to face (mm) : 97 - 107
  • Wall to pipe centres (mm) : 65 - 75
  • Watts: 440
  • Watts group: 300 to 600 Watts

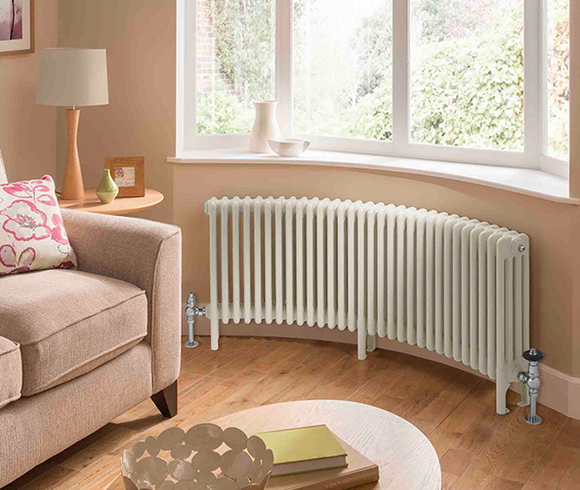

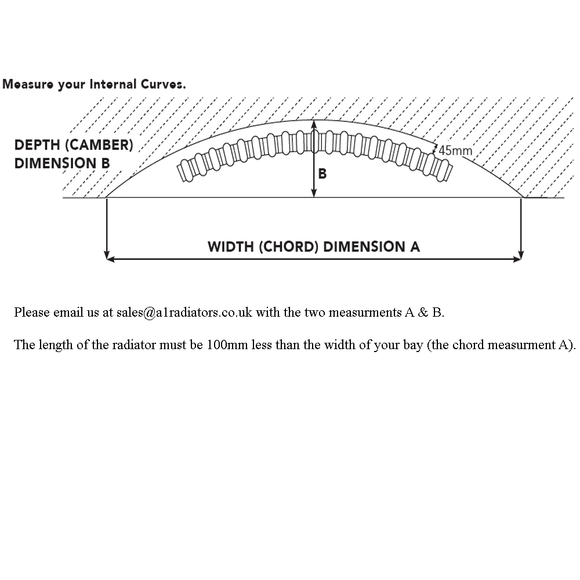

  • This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Your curved radiator will come with welded feet as standard. Feet will add 100mm to the height. So the total height of the radiator will be the height of the radiator (given above) plus 100mm. The number of feet is explained as follows; for up to 20 sections you will require 2 feet. For 21 sections up to 39 (for an odd number) you will require 3 feet. For 22 sections up to 40 (for an even number of sections) you require 4 feet.
