Curved Radiator - 2 Column 500mm high x 521mm. 1376 BTU 403 Watts Mottled Copper media thumbnails

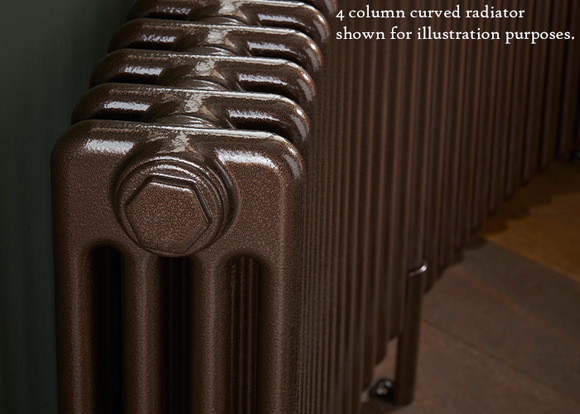

Curved radiator in Mottled Copper

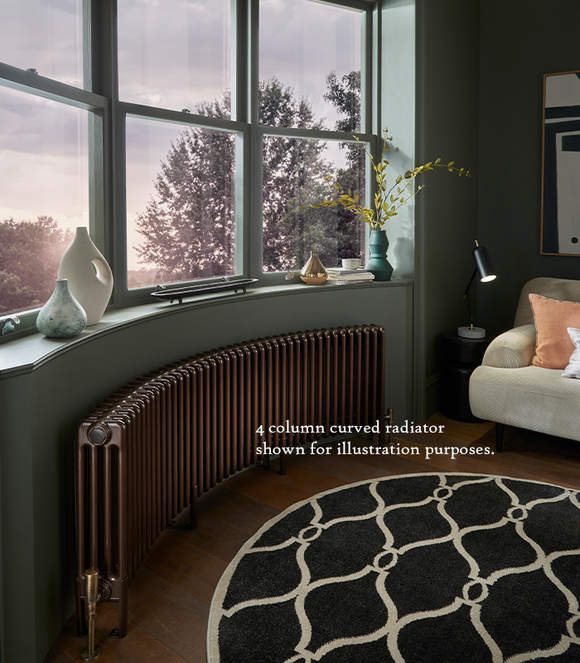

Curved radiator in Mottled Copper

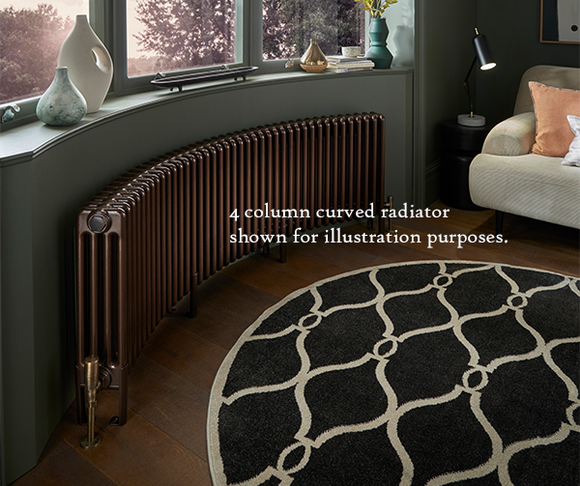

Curved radiator in Mottled Copper

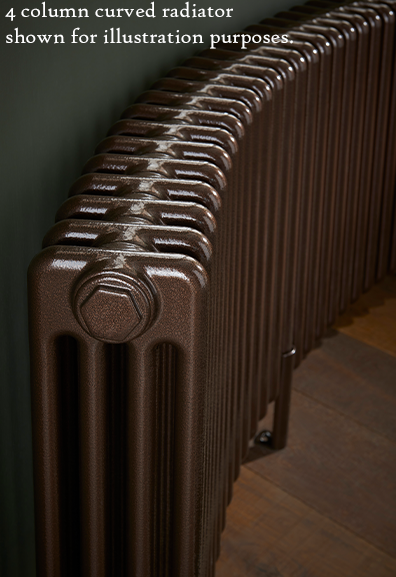

Curved radiator in Mottled Copper
Special Finish Mottled Copper

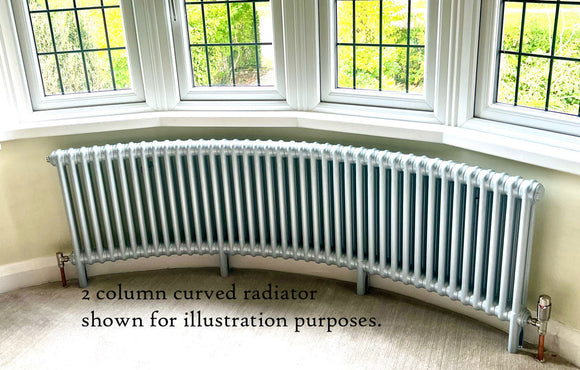

2 Column Curved Radiator

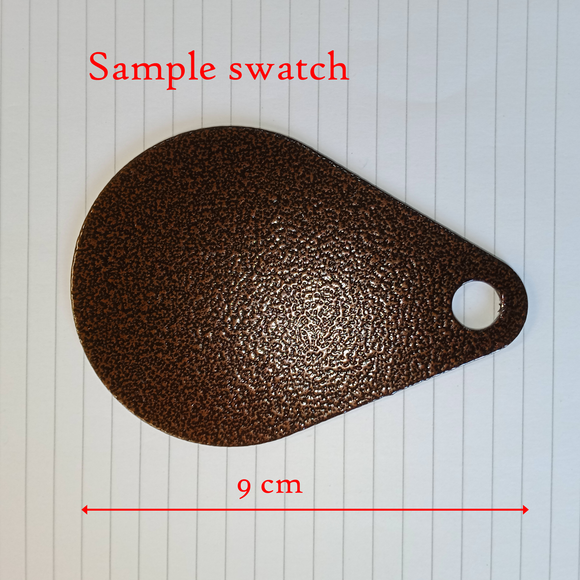

Sample swatch in Mottled Copper
10 year guarantee

Curved Radiator - 2 Column 500mm high x 521mm. 1376 BTU 403 Watts Mottled Copper

A1 Radiators

£336.86 £540.30 Save £203.44

Tax included

  • Availability: 7 Weeks
  • Bottom of radiator to inlet centre (mm): 35
  • BTU group (Delta T 50 UK Standard Central Heating): 1000 to 2000 BTU
  • BTU (Delta T 30 Heat Source Pumps): 702
  • BTU (Delta T 50 UK Standard Central Heating): 1376
  • Columns: 2
  • Depth (mm) : 65
  • Finish: Mottled Copper
  • Guarantee: 10 Years
  • Height (mm) : 500
  • Length group: 301 to 600mm
  • Length (mm) : 521
  • Material: Mild Steel
  • Number of optional feet: 2
  • Orientation: Horizontal
  • Sections: 11
  • Wall to face (mm) : 97 - 107
  • Wall to pipe centres (mm) : 65 - 75
  • Watts: 403
  • Watts group (Delta T 50 UK Standard Central Heating): 300 to 600 Watts
  • Watts (Delta T 30 Heat Source Pumps): 206
  • Weight (kg) : 7.7

  • This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.

    If you wish to purchase feet then this radiator would require 2 feet.
