Curved Radiator - 3 Column 600mm high x 836mm. 3721 BTU 1090 Watts White

Name: Curved Radiator - 3 Column 600mm high x 836mm. 3721 BTU 1090 Watts White
Brand: A1 Radiators
Price: 503.76 GBP
Availability: InStock

A1 Radiators SKU: Barcode:

£503.76 £807.50 Save £303.74

Tax included

Availability: 7 Weeks

Bottom of radiator to inlet centre (mm): 35

BTU group (Delta T 50 UK Standard Central Heating): 3000 to 4000 BTU

BTU (Delta T 30 Heat Source Pumps): 1898

BTU (Delta T 50 UK Standard Central Heating): 3721

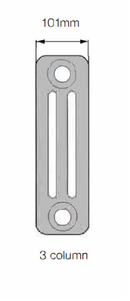

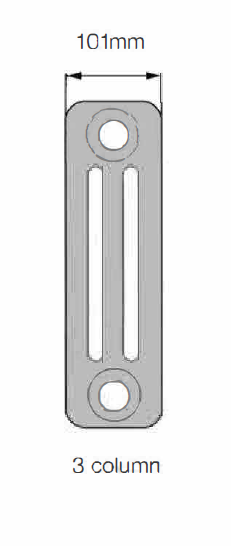

Columns: 3

Depth (mm) : 101

Finish: White

Guarantee: 10 Years

Height (mm) : 600

Length group: 601 to 900mm

Length (mm) : 836

Material: Mild Steel

Number of optional feet: 2

Orientation: Horizontal

Sections: 18

Wall to face (mm) : 133 - 143

Wall to pipe centres (mm) : 83 - 93

Watts: 1090

Watts group (Delta T 50 UK Standard Central Heating): 900 to 1200 Watts

Watts (Delta T 30 Heat Source Pumps): 556

Weight (kg) : 19.8

Delta T 30 (Δ T30) is the industry standard for sizing radiators when converting to a low-temperature system like an Air Source Heat Pump (ASHP) or Ground Source Heat Pumps (GSHP).

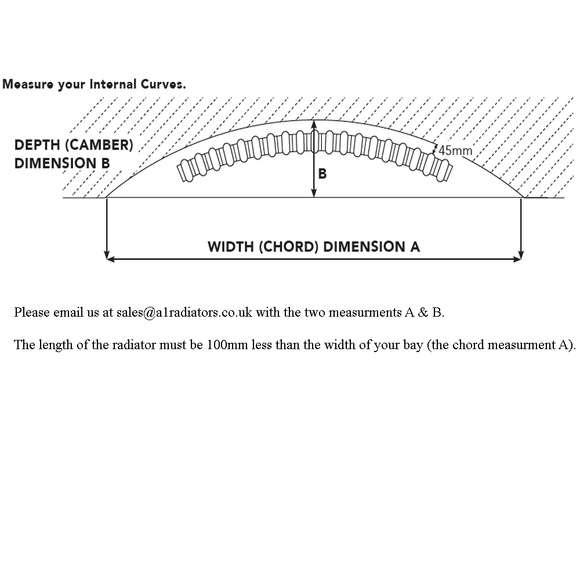

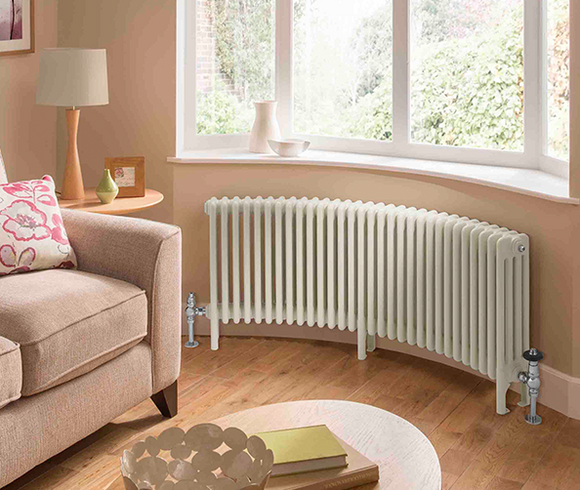

This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.

If you wish to purchase feet then this radiator would require 2 feet.
