Curved Radiator - 4 Column 750mm high x 1239mm. 8917 BTU 2613 Watts White

A1 Radiators

£1,107.31 £1,845.89 Save £738.58

Tax included

  • Availability: 6 Weeks (See description)
  • BTU: 8917
  • BTU group: 8000 to 9000 BTU
  • Columns: 4
  • Depth (mm) : 139
  • Finish: White
  • Guarantee: 10 Years
  • Height (mm) : 750
  • Length group: 1201 to 1500mm
  • Length (mm) : 1241
  • Material: Mild Steel
  • Number of feet: 3
  • Orientation: Horizontal
  • Pipe centres (mm): 1331
  • Sections: 27
  • Wall to face (mm) : 171 -181
  • Wall to pipe centres (mm) : 102 -112
  • Watts: 2613
  • Watts group: 2400 to 2700 Watts

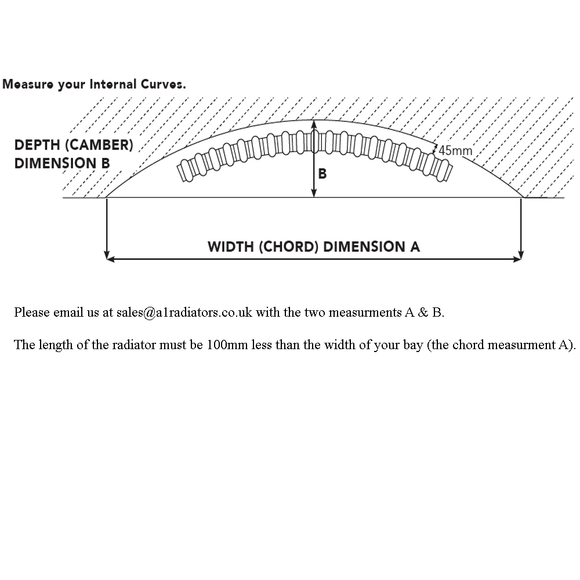

  • This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Your curved radiator will come with welded feet as standard. Feet will add 100mm to the height. So the total height of the radiator will be the height of the radiator (given above) plus 100mm. The number of feet is explained as follows; for up to 20 sections you will require 2 feet. For 21 sections up to 39 (for an odd number) you will require 3 feet. For 22 sections up to 40 (for an even number of sections) you require 4 feet.

    Please note, all curved column radiators will be delayed due to the factory shutdown in Italy through the summer. Please contact us for details.
