Curved Radiator - 4 Column 500mm high x 1421mm. 7076 BTU 2074 Watts Bare Metal Lacquered

A1 Radiators

£1,370.27 £2,284.24 Save £913.97

Tax included

  • Availability: Delayed. Please see description.
  • BTU: 7076
  • BTU group: 7000 to 8000 BTU
  • Columns: 4

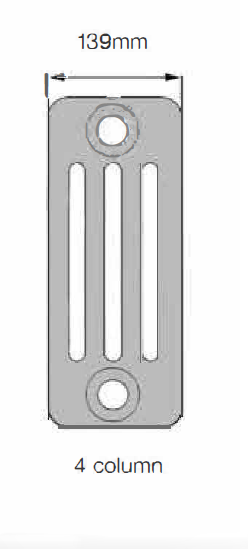

  • Depth (mm) : 139

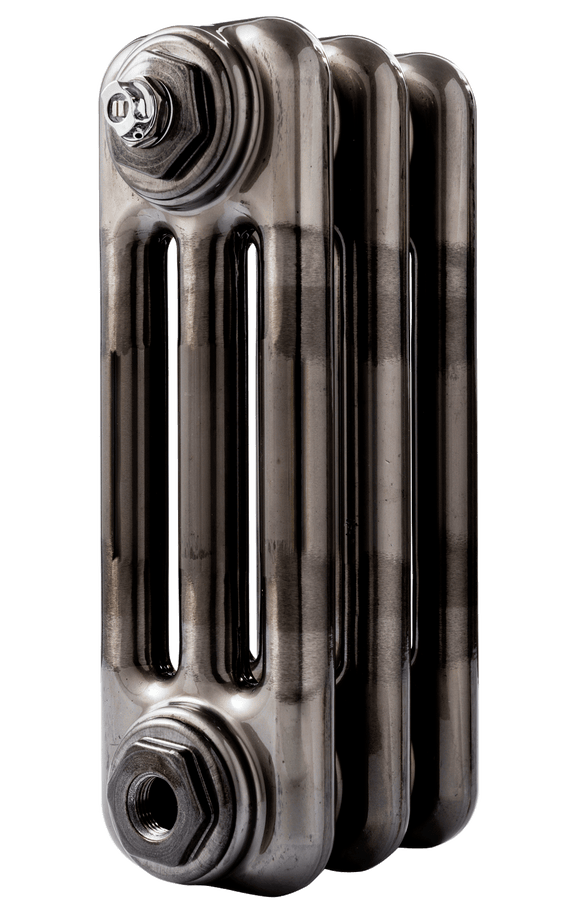

  • Finish: Bare Metal Lacquered
  • Guarantee: 10 Years
  • Height (mm) : 500
  • Length group: 1201 to 1500mm
  • Length (mm) : 1421
  • Material: Mild Steel
  • Number of feet: 3
  • Orientation: Horizontal
  • Sections: 31
  • Wall to face (mm) : 171 -181
  • Wall to pipe centres (mm) : 102 -112
  • Watts: 2074
  • Watts group: 1800 to 2100 Watts

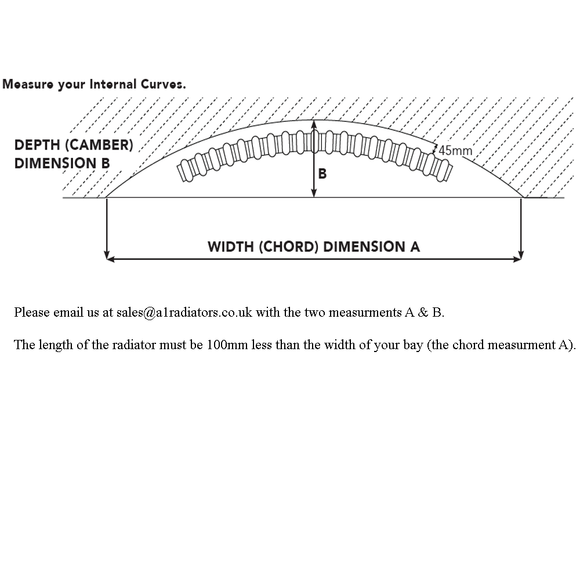

    • This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Your curved radiator will come with welded feet as standard. Feet will add 100mm to the height. So the total height of the radiator will be the height of the radiator (given above) plus 100mm. The number of feet is explained as follows; for up to 20 sections you will require 2 feet. For 21 sections up to 39 (for an odd number) you will require 3 feet. For 22 sections up to 40 (for an even number of sections) you require 4 feet.

    Please note, all curved radiators will be delayed due to the factory shutdown in Italy over Christmas. Please contact us for details.
