Curved Radiator - 4 Column 750mm high x 1826mm. 13210 BTU 3872 Watts Bare Metal Lacquered media thumbnails

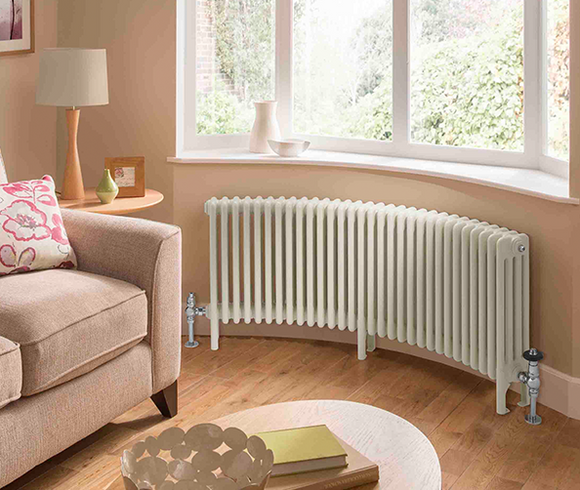

Curved radiator
Curved radiator
Curved radiator

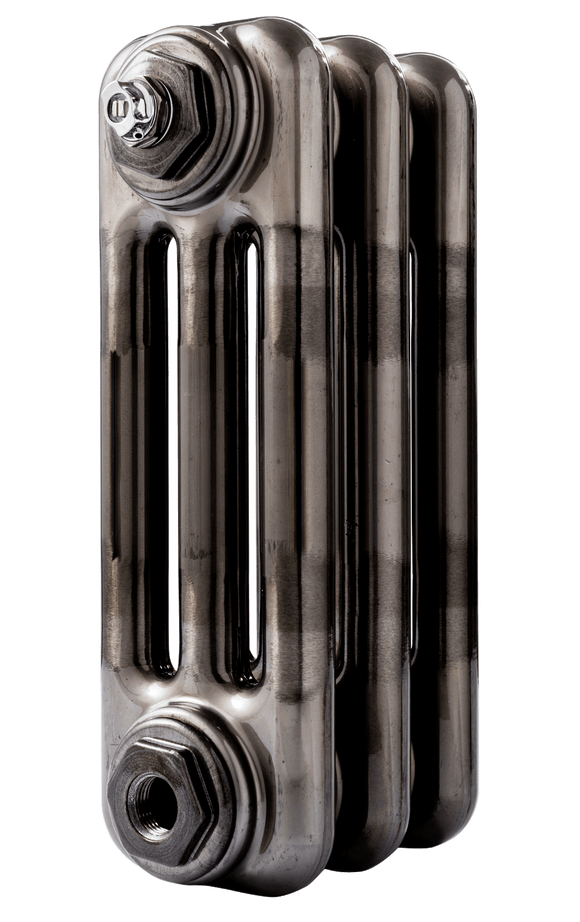

Bare metal lacquer finish.
10 year guarantee

Curved Radiator - 4 Column 750mm high x 1826mm. 13210 BTU 3872 Watts Bare Metal Lacquered

A1 Radiators

£1,517.95 £2,439.69 Save £921.74

Tax included

  • Availability: 7 Weeks
  • Bottom of radiator to inlet centre (mm): 35
  • BTU group (Delta T 50 UK Standard Central Heating): 12000 BTU and above
  • BTU (Delta T 30 Heat Source Pumps): 6737
  • BTU (Delta T 50 UK Standard Central Heating): 13210
  • Columns: 4

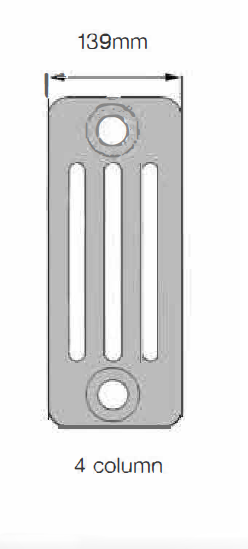

  • Depth (mm) : 139
  • Finish: Bare Metal Lacquered
  • Guarantee: 10 Years
  • Height (mm) : 750
  • Length group: 1501 to 1850mm
  • Length (mm) : 1826
  • Material: Mild Steel
  • Number of optional feet: 4
  • Orientation: Horizontal
  • Sections: 40
  • Wall to face (mm) : 171 -181
  • Wall to pipe centres (mm) : 102 -112
  • Watts: 3872
  • Watts group (Delta T 50 UK Standard Central Heating): 3600 Watts and above
  • Watts (Delta T 30 Heat Source Pumps): 1975
  • Weight (kg) : 75.7

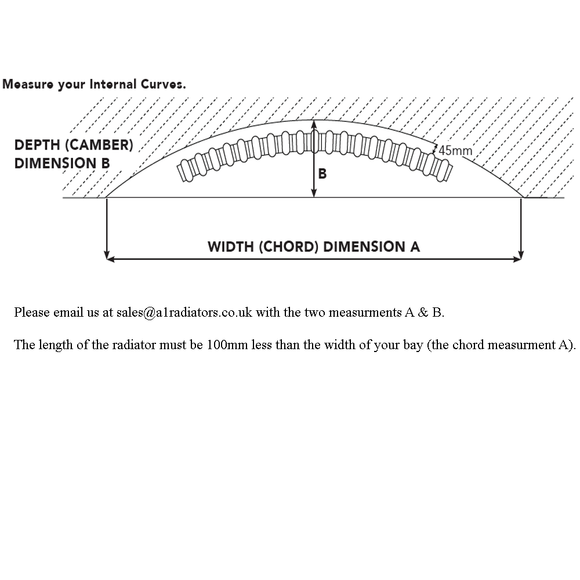

  • This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.

    If you wish to purchase feet then this radiator would require 4 feet.
