Curved Radiator - 4 Column 600mm high x 1466mm. 8623 BTU 2527 Watts Mottled Copper media thumbnails

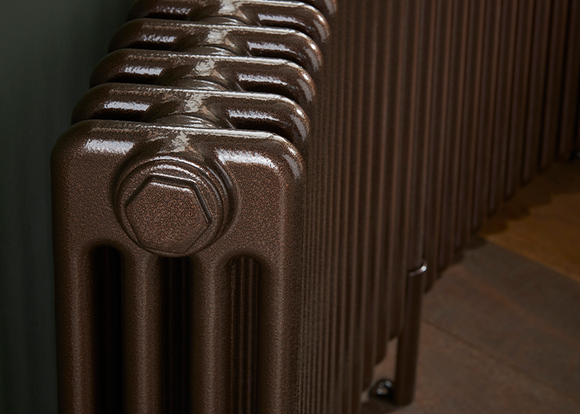

Curved radiator in Mottled Copper

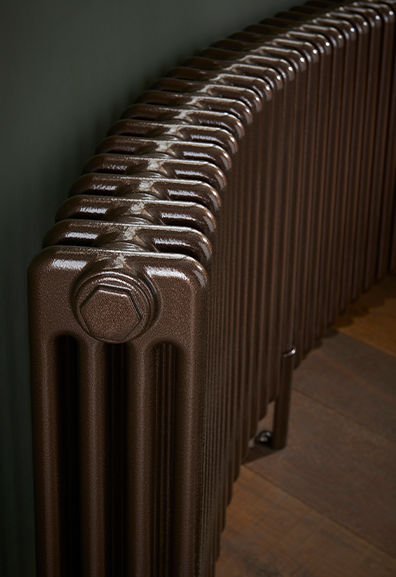

Curved radiator in Mottled Copper

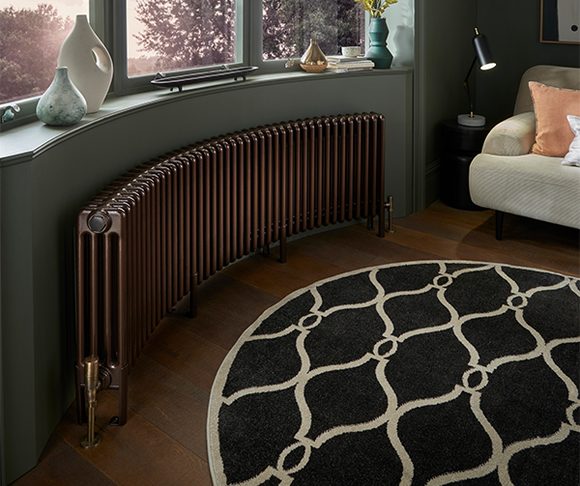

Curved radiator in Mottled Copper

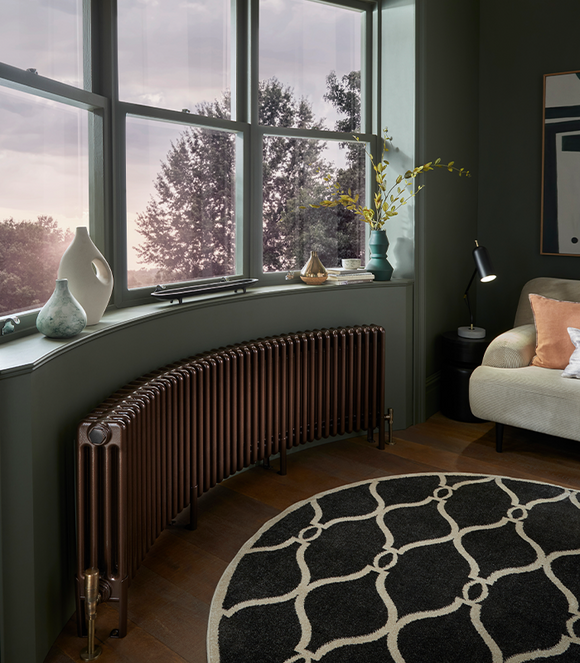

Curved radiator in Mottled Copper
Special Finish Mottled Copper

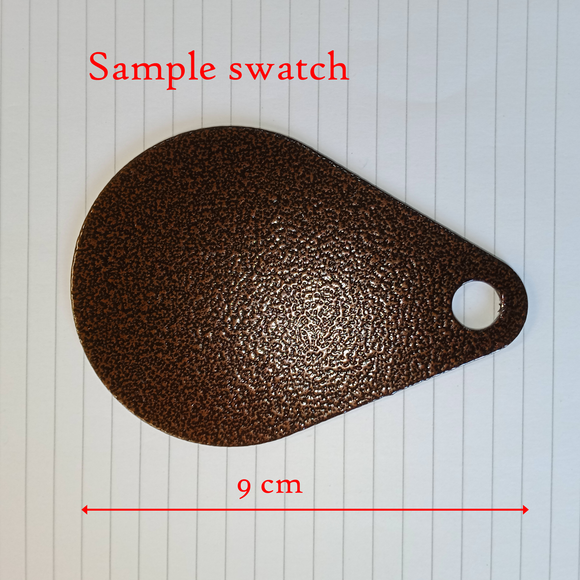

Sample swatch in Mottled Copper
10 year guarantee

Curved Radiator - 4 Column 600mm high x 1466mm. 8623 BTU 2527 Watts Mottled Copper

A1 Radiators

£1,120.28 £1,799.40 Save £679.12

Tax included

  • Availability: 7 Weeks
  • Bottom of radiator to inlet centre (mm): 35
  • BTU group (Delta T 50 UK Standard Central Heating): 8000 to 9000 BTU
  • BTU (Delta T 30 Heat Source Pumps): 4398
  • BTU (Delta T 50 UK Standard Central Heating): 8623
  • Columns: 4
  • Depth (mm) : 139
  • Finish: Mottled Copper
  • Guarantee: 10 Years
  • Height (mm) : 600
  • Length group: 1201 to 1500mm
  • Length (mm) : 1466
  • Material: Mild Steel
  • Number of optional feet: 4
  • Orientation: Horizontal
  • Sections: 32
  • Wall to face (mm) : 171 -181
  • Wall to pipe centres (mm) : 102 -112
  • Watts: 2527
  • Watts group (Delta T 50 UK Standard Central Heating): 2400 to 2700 Watts
  • Watts (Delta T 30 Heat Source Pumps): 1289
  • Weight (kg) : 49.2

  • This radiator will be curved. We will contact you shortly after purchase to get the width (called the chord) and the depth (called the camber) so that our factory can manufacture the correct curve. We will send you a technical drawing for you to check and approve before your radiators is made. Feet are not a requirement for column radiators; they come supplied with wall brackets. You can choose the feet option for aesthetic reasons or if the radiator is heavy and you're uncertain of getting a secure fixing to the wall. The feet will transfer the radiator weight from the wall bracket to the floor.

    If you wish to purchase feet then this radiator would require 4 feet.
